Stacking basket PG

printbutton2

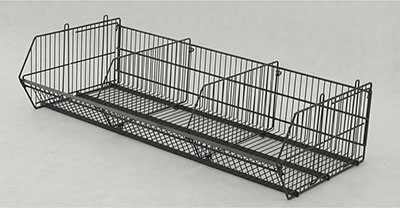

k nastawnyPG 1s

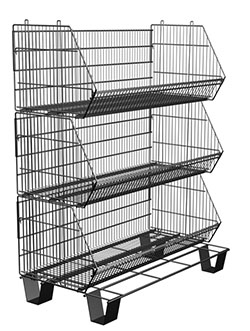

k nastawnyPG 3s

Possible use of baskets: setting on the racks shelf, stacking baskets one on another, assembly on the movable chassis to the PG baskets.





Standard finish: zinc plated + lacquer or powder coated.
Technical data: The structure of basket made of spot welded wire. The bottom is reinforced with flat irons
Maximum loading (with equable spreading of the goods):
single basket - 100 kg,
3 stacked basked - 100kg/50kg/50 kg.



k nastawnyPG 2s


'



k nastawnyPG 4s


TYPE OF
THE BASKET		  DIMENSIONS (mm)
a b c d e
1195x460 H-300 1195 460 300 325 1206
1195x570 H-450 1195 570 450 475 1206
1220x570 H-300 1220 570 300 325 1206
1310x460 H-300 1295 460 300 325 1306
1310x570 H-300 1295 570 300 325 1306
1310x570 H-450 1295 570 450 475 1306
1310x910 H-300 1295 910 300 325 1306
1310x910 H-450 1295 910 450 475 1306

ADDITIONAL ACCESORIES: Aesthetic wire divider can be used to divide the basket at any location, allowing a larger number of differen.



PRODUCT NAME FINISH INDEX FINISH INDEX
Stacking basket PG 1195x460 H-300 zinc plated + lacquer ____ powder coated 919-343-874
Stacking basket PG 1195x570 H-450 zinc plated + lacquer ____ powder coated 919-343-875
Stacking basket PG 1220x570 H-300 zinc plated + lacquer ____ powder coated 919-343-847
Stacking basket PG 1310x460 H-300 zinc plated + lacquer 919-350-925 powder coated ____
Stacking basket PG 1310x570 H-300 zinc plated + lacquer ____ powder coated 919-343-878
Stacking basket PG 1310x570 H-450 zinc plated + lacquer 919-350-926 powder coated 919-343-877
Stacking basket PG 1310x910 H-300 zinc plated + lacquer ____ powder coated 919-343-848
Stacking basket PG 1310x910 H-450 zinc plated + lacquer ____ powder coated 919-343-849
WYPOSAŻENIE DODATKOWE FINISH INDEX FINISH INDEX
Divider to stacking basket PG 460 H-300 zinc plated + lacquer ____ powder coated 919-343-879
Divider to stacking basket PG 570 H-300 zinc plated + lacquer ____ powder coated 919-343-856
Divider to stacking basket PG 570 H-450 zinc plated + lacquer ____ powder coated 919-343-880
Divider to stacking basket PG 910 H-300 zinc plated + lacquer ____ powder coated 919-343-857
Divider to stacking basket PG 910 H-450 zinc plated + lacquer ____ powder coated 919-343-858
Base to the stacking basket PG 1195x570 zinc plated + lacquer ____ powder coateda 919-343-882
