Standard finish: zinc plated + lacquer or powder coated. Technical data: The structure of basket made of spot welded wire. The bottom is reinforced with flat irons against deformation. Stacking feet made of wire. The movable chassis made of sections. Maximum loading: (with equable spreading of the goods): single basket - 100 kg, 3 stacked basked - 100kg/50kg/50 kg.
|

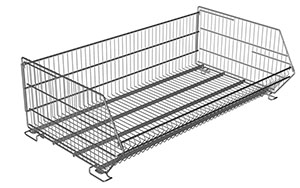

Baskets are mainly intended for storage and loose display of fast-rotating goods In stores and supermarkets.
|
Possible use of baskets: - setting on the racks shelf, - placed directly on the ground, - stacking baskets one on another, - assembly on the movable chassis.
|
|
|
TYPE OF THE BASKET
|
DIMENSIONS (mm) |
a |
b |
c |
d |
e |
600x400 H-365 |
600 |
440 |
365 |
400 |
560 |
600x600 H-365 |
600 |
640 |
365 |
400 |
560 |
|
|
ADDITIONAL ACCESORIES:

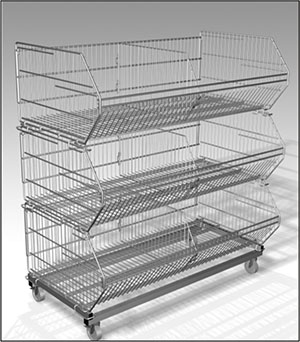

Aesthetic wire divider can be used to divide the basket at any location, allowing a larger number of different products to be displayed. Base with wheels makes the baskets become an independent movable rack.
|
|
|
|
|
|
PRODUCT NAME |
FINISH |
INDEX |
FINISH |
INDEX |
Stacking basket 600x400 H-365 |
powder coated |
919-343-840 |
zinc plated + lacquer |
______ |
Stacking basket 600x600 H-365 |
powder coated |
919-343-026 |
zinc plated + lacquer |
______ |
Stacking basket 800x500 H-365 |
powder coated |
919-344-001 |
zinc plated + lacquer |
______ |
Stacking basket 1200x500 H-365 |
powder coated |
919-343-917 |
zinc plated + lacquer |
______ |
Stacking basket 1200x600 H-365 |
powder coated |
919-342-994 |
zinc plated + lacquer |
919-350-741 |
Stacking basket 1200x700 H-365 |
powder coated |
919-343-028 |
zinc plated + lacquer |
919-350-742 |
Stacking basket 1300x800 H-390 |
powder coated |
919-343-030 |
zinc plated + lacquer |
______ |
|
ADDITIONAL EQUIPMENT |
FINISH |
INDEX |
FINISH |
INDEX |
Divider to the basket 400 H-310 |
powder coated |
919-343-841 |
zinc plated + lacquer |
______ |
Divider to the basket 500 H-310 |
powder coated |
919-343-918 |
zinc plated + lacquer |
______ |
Divider to the basket 600 H-310 |
powder coated |
919-342-995 |
zinc plated + lacquer |
919-350-779 |
Divider to the basket 700 H-310 |
powder coated |
919-343-029 |
zinc plated + lacquer |
919-350-743 |
Divider to the basket 800 H-265 |
powder coated |
919-343-031 |
zinc plated + lacquer |
______ |
Movable chassis to the stacking basket 600x400 |
powder coated |
919-343-842 |
zinc plated + lacquer |
______ |
Movable chassis to the stacking basket 600x600 |
powder coated |
919-343-027 |
zinc plated + lacquer. |
______ |
Movable chassis to the stacking basket 1200x600 |
powder coated |
919-342-996 |
zinc plated + lacquer |
919-350-784 |
|
|
|
