Shelving for fruit and vegetaible's stand

printbutton2

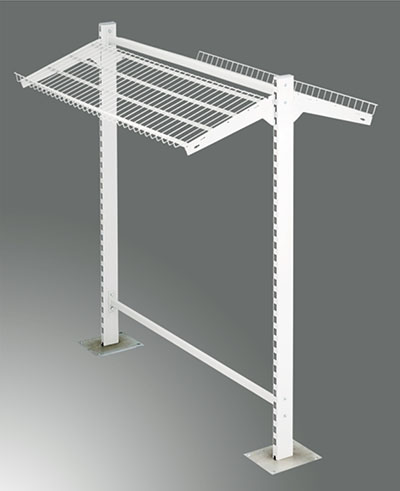

regal ow 1s

Shelving can be used to exposition and sale fruits and
vegetables.

Standard finish: powder coated; shelves and feet are zinc plated + lacquer.


Technical data: legs made of section, wire shelves assembled on brackets, that are stacked into profile. Shelving is assembled to the ground with chemical anchor.


Maximum loading:
Shelf 430 x 1330 mm - 120 kg. on one shelf (with equable spreading of the goods).




ADDITIONAL EQUIPMENT:

There is a possibility of assembly an additional equipment:
- Table under the scale,
- Double basket for bags on roll.

One or two
levels of shelves

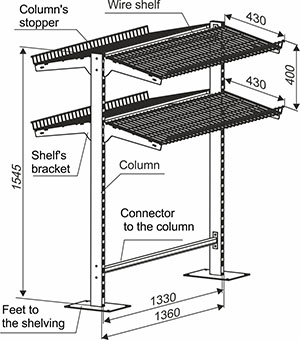

regal ow 3en

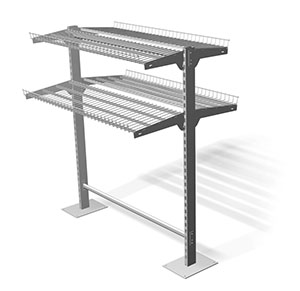

regal ow 2s
SHELVING FOR FRUIT AND VEGETABLE'S STAND - elements FINISH INDEX
Column 80x30x2,5 mm, H-1540 mm powder coated 922-345-271
Column's stopper 80x30 mm _______ WKPP 80x30
Steel, zinc plated feet to the shelving zinc plated + lacquer 919-350x680
Connector to the column L-1330 powder coated 922-345-274
Wire shelf 1330x430 assembled on the brackets powder coated 919-342-926
Shelf's bracket T-400 powder coated 922-345-277
