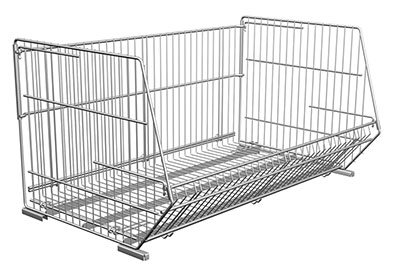

Folding stacking basket STKK

printbutton2





k nastawnySTKK 1s



k nastawnySTKK 3s

Folding stacking baskets STKK (stacking feet made of closed channel bar). Baskets are mainly intended for storage and loose display of fast-rotating goods in stores and supermarkets.




Possible use of baskets:
- setting on the racks shelf

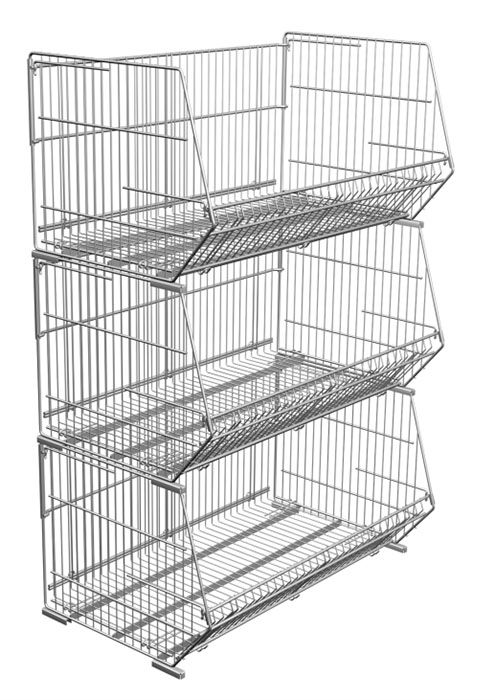

- stacking baskets one on another



Standard finish: zinc plated + lacquer .



k nastawnySTKK 2s



Standard finish: zinc plated + lacquer .
Technical data: The structure of basket made of spot welded wire. The bottom is reinforced with flat irons against deformation under heavy loads. Stacking feet made of channel bar with closed ends to protect against displacement of stacked baskets.



  k nastawnySTKK 4s

Maximum loading: (with equable spreading of the goods):
single basket - 100 kg,
3 stacked basked - 100kg/50kg/50 kg.



Its small dimensions after folding means that when a basket is not being used, it doesn't take up warehouse space.


k nastawnySTKK 5s
TYPE OF
THE BASKET
 DIMENSIONS (mm)
a b c d e
940x680 H-435 955 600 435 455 940
940x580 H-450 955 580 470 490  940
500x580 H-450 515 580 470 490 500

PRODUCT NAME FINISH INDEX
Folding stacking basket STKK 940x680 H-435 zinc plated + lacquer 919-343-812
Folding stacking basket STKK 940x580 H-450 zinc plated + lacquer 919-350-856
Folding stacking basket STKK 500x580 H-450 zinc plated + lacquer 919-350-920
