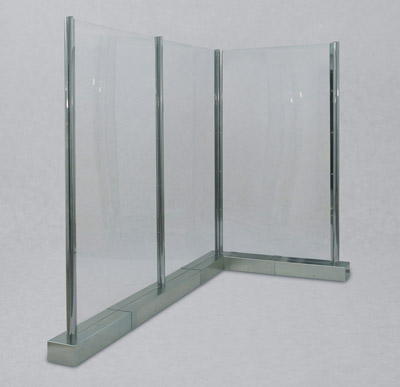

Tight partition with the full bottom is designed
to organize the shops open space.
Realization
Elements:
- transparent board made of non-flammable
polycarbonate, 5 mm thick, dimentions
926x1878 mm,
- stand H-2000 mm 48x2,0 with a slat,
- elements of the stand (base, cap, connector)
Partition is fixed to the ground with anchor.
Dimentions:
Partition's height - 2000 mm,
Spacing on stands - 1000 mm
Finish:
Stand and the slat - chrome,
Base - electroplated with zinc.

alt

wygr pelne3 en s

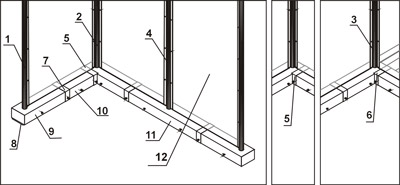

ELEMENTS OF TIGHT PARTITION

FINISH

INDEX

1. Finishing stand

chrome

919-320-548

2. Corner stand

chrome

919-320-549

3. Middle corner stand

chrome

919-320-552

4. Middle stand

chrome

919-320-547

5. Corner connector

zinc plated + lacquer

919-350-870

6. Middle corner connector

zinc plated + lacquer

919-350-869

7. Middle connector

zinc plated + lacquer

919-350-864

8. Base

zinc plated + lacquer

919-350-860

9. Finish cap

zinc plated + lacquer

919-350-863

10. Short cap

zinc plated + lacquer

919-350-862

11. Middle cap

zinc plated + lacquer

919-350-861

12. Board made of polycarbonate 926x1878 mm

_______

PL_5,0X926X1878-P
