CUSTOMER GUIDANCE SYSTEM

FLOOR BUMPER

The DAMIX floor-mounted bumper is a modular protection system designed to safeguard the lower sections of shop fittings and retail spaces. Its stainless steel tube construction allows protective sections to be created to suit the layout of shelving units, walls and walkways. With connecting components and 90° and 135° corner fittings, the system enables both straight and angled protective barriers to be assembled, helping to prevent damage caused by shopping trolleys and transport carts.

EQUIPMENT PROTECTION

Effective floor-level protection

The DAMIX floor-mounted bumper provides additional protection for shelving units, walls and other retail fixtures against accidental impacts from shopping trolleys and transport carts. Positioned close to floor level, the structure creates a physical barrier in areas particularly vulnerable to contact with moving equipment.

The modular design of the system allows the bumper layout to be adapted to the layout of the premises. Straight tube sections can be joined using dedicated mounting components, while 90° and 135° corner fittings allow the protective barrier to follow bends and corners.

KEY SPECIFICATIONS

Material type
Modular floor-mounted bumper
Material
Stainless steel
Tube diameter
Ø38 mm
Tube wall thickness
2 mm
Corner options
90° / 135°
System components
Tubes, connectors, brackets, corner fittings, end caps
Application
Protection of Equipment and Walkways
as well as areas around refrigerated display cabinets in stores
Mounting
Floor-mounted

MODULAR DESIGN

Floor-Mounted Bumper System Components

CONSTRUCTION COMPONENTS

A system tailored to your space

The DAMIX modular floor-mounted bumper protects shop fittings against impacts from shopping trolleys. Its stainless steel construction and connecting system allow straight and corner sections to be assembled to suit the layout of the retail space.

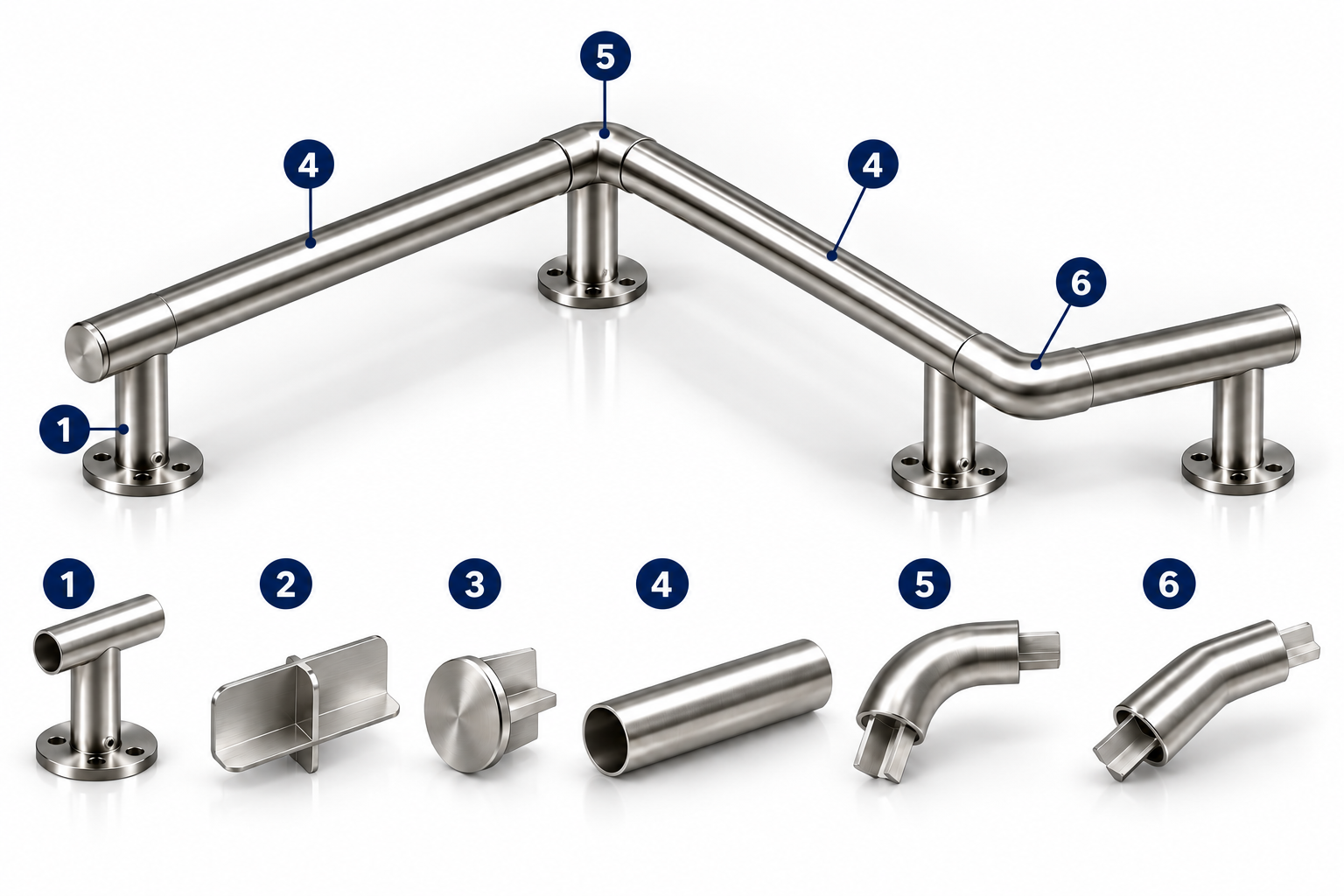

SYSTEM COMPONENTS

01Mounting bracket
02Connecting element
03End cap Ø38 mm
04Straight tube Ø38 × 2 mm
0590° corner fitting
06135° corner fitting
